Cu- Alloy Horizontal Lift Check Valves - Pn 16, Class 100 (Limited)

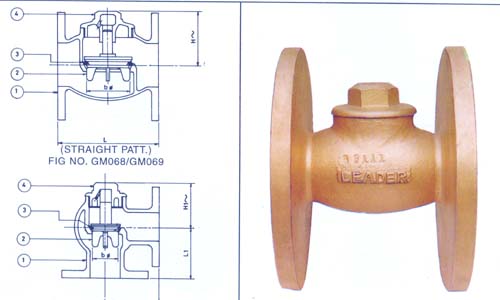

				STANDARD MATERIAL COMBINATION
P.No.		Qty.	DESCRIPTION				MATERIAL				SPECIFICATIONS
1		1	BODY				G.M.				EN 1982 Gr. CC491K
2		1	DISC				G.M.				EN 1982 Gr. CC491K
3		1	O-RING				RUBBER			-
4		1	COVER				G.M.				EN 1982 Gr. CC491K
						DIMENSIONAL DATA
	DN		15	20	25	32	40	50		65		80		100		125	150
	NPS		1/2	3/4	1	11/4 -	11/2	2		21/2		3		4		5	6
	L		52	64	83	83	83	108		142		175		207		249	281
	L1		57	64	76	76	85	98.5		104		111		136		-	-
	b		11	16	22.5	29	35	45		63.5		76.2		96		122	148
	H		25	30	40	50	55	60		75		85		110		130	145
	H1		25	30	40	45	50	65		90		95		110		-	-
	PN16		GM 068 AD	GM 068 AF	GM 068 AG	GM 068 AH	GM 068 AI	GM 068 AJ	GM 068 AK			GM 068 Al		GM 068 AN	GM 068 AD		GM 068 AP
ITEM	PN16
	CLASS 100		GM 069 AD	GM 069 AF	GM 069 AG	GM 069 AH	GM 069 AI	GM 069 AJ	GM 069 AK			GM G69 AL		GM 069 AN	GM 069 AD		GM 069 AP
CODE	PN 16
	ANGLE PATT.I		GM 070 AD	GM 070 AF	GM 070 AG	GM 070 AH	GM 070 AI	GM 070 AJ	GM 070 AK			GM 070 Al		GM 070 AN		-	-
NOS.	ANGLE PATT.I
	"LASS 100		GM 071 AD	GM 071 AF	GM 071 AG	GM 071 AH	GM 071 AI	GM 071 AJ	GM 071 AK			GM 071 Al		GM 071 AN		-	-
	ANGLE PATT.I		GM 071 AD	GM 071 AF	GM 071 AG	GM 071 AH	GM 071 AI	GM 071 AJ	GM 071 AK			GM 071 Al		GM 071 AN		-	-
NOMINAL PRESSURE ACCORDING					END DETAILS						TEST		PRESSURES
TO PN OR CLASS DESIGNATION								SHELL TEST				SEAT TEST				STANDARD NO.
TO PN OR CLASS DESIGNATION								(HYDROSTATIC)				(HYDROSTATIC)
PN 16					FLANGED ENDS AS PER BS 4504 PN 16			24 bar				17.6 bar				BS 6755 PART-1
CLASS 100					FLANGED ENDS AS PER BS 10 TABLE E			300 psig				220 psig
